  • · Size 52mm
  • · Height 21mm
  • · Impedance 8Ω ± 15%
  • · Power 1.0W/3.0W
  • · Fo 145Hz
  • · SPL 80dB

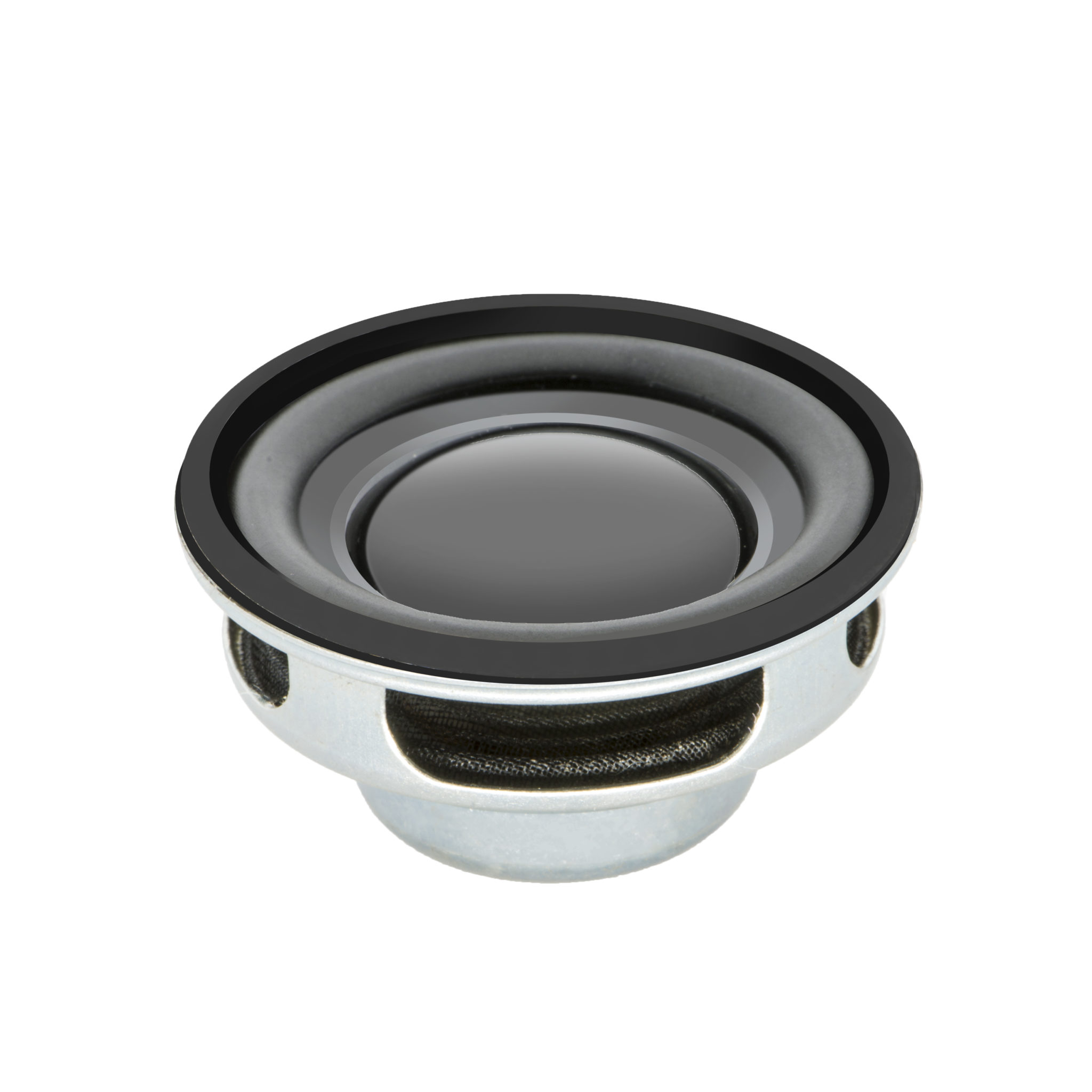

  • 52mm low profile telecoms speaker designed to comply with TIA 920 boasts very  low THD from 150Hz to 10kHz.

    With a height of only 21mm this speaker is ideal for slimline desktop telephones and other applications requiring wide bandwidth, low THD and very low Fo.

    Key parameters are:

    • SPL: 80dB 1W/1m
    • Fo: 145Hz
    • Bandwidth: Fo to 15kHz
    • THD:
      • Max 6% (150Hz to 230Hz)
      • Max  4%(231 Hz to 500Hz)
      • Max 2.5% (501 Hz to 10kHz)
